超聲波清洗機生產廠家配件的介紹

作者：admin來源：http://m.eriksarni.com/時間：2020-09-29

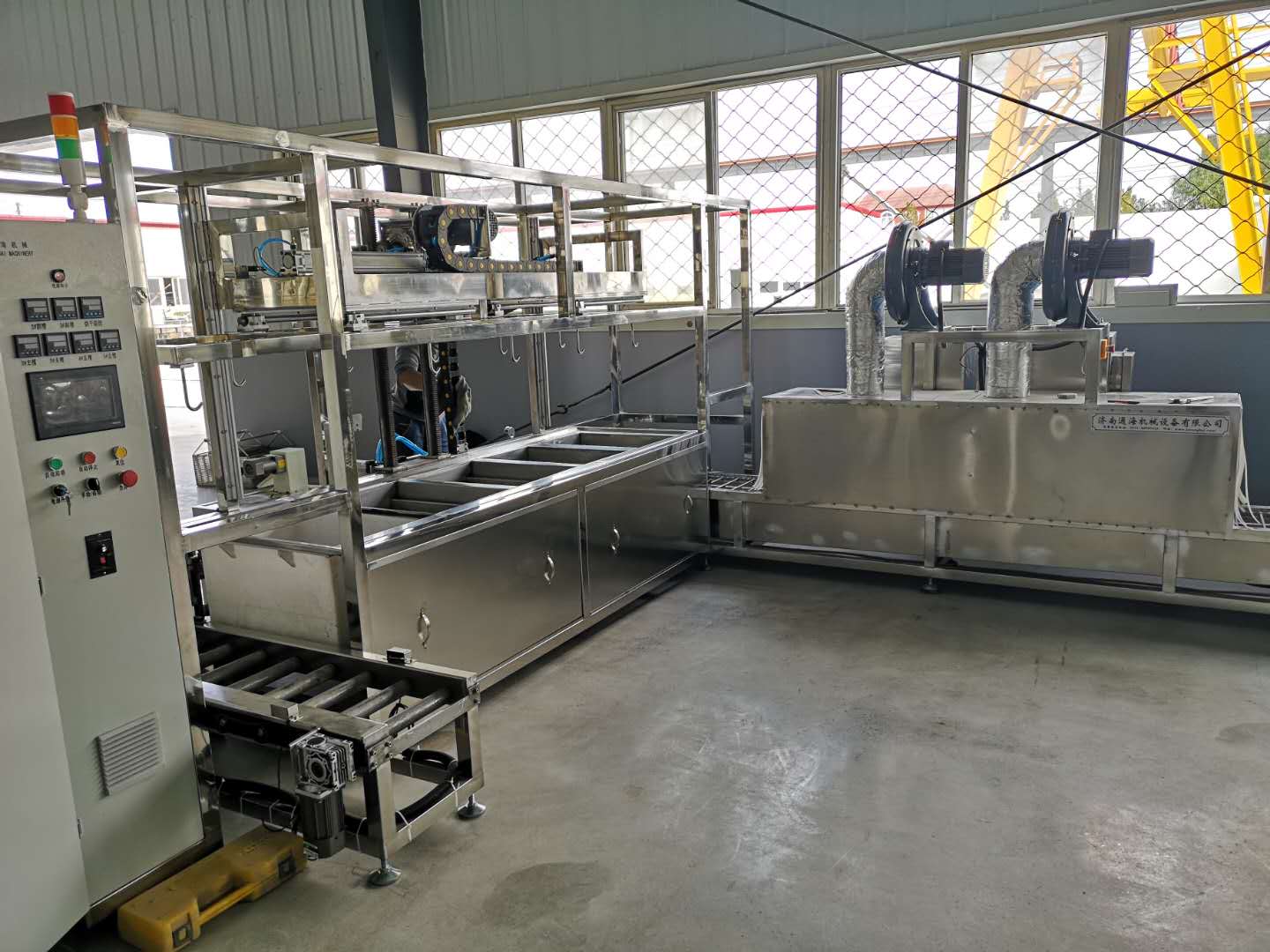

超聲波清洗機主要由超聲波發生器、換能器及其它的輔助系統等八大配件組成。

Ultrasonic cleaning machine is mainly composed of eight parts such as ultrasonic generator, transducer and other auxiliary systems.

1、其中發生器是相對于機器本身而言是比較重要的配件之一，超聲波發生器將工頻電轉變成28KHZ以上的高頻電信號，通過電纜輸送到換能器上。一般超聲波換能器是固定在清洗槽的底板上，清洗槽內裝滿了液體，當換能器被加上高頻電壓后，它的壓電陶瓷元件在電場作用下便產生縱向振動。

1. The generator is one of the most important accessories relative to the machine itself. The ultrasonic generator transforms the power frequency electric signal into a high frequency electric signal above 28kHz, which is transmitted to the transducer through the cable. Generally, ultrasonic transducer is fixed on the bottom plate of the cleaning tank, which is filled with liquid. When the transducer is applied with high frequency voltage, its piezoelectric ceramic components will produce longitudinal vibration under the action of electric field.

2、超聲波換能器（又稱聲頭）是一種高效率的換能元件，能將電能轉換成強有力的超聲波振動，在產生超聲波振動時，仿佛是一個小的活塞，振幅很小，約只有幾微米。但這個振動加速度很大（幾十至幾千個）；槽上具有許多個換能器，施加相同的頻率及相位的電能時，就合成了一個巨大的活塞進行往復振動，這種振動的現象，就是平時我們所說的超聲波。

2. Ultrasonic transducer (also known as sound head) is a kind of high-efficiency energy conversion element, which can convert electric energy into strong ultrasonic vibration. When ultrasonic vibration is generated, it seems to be a small piston with a small amplitude of only a few microns. But this vibration acceleration is very large (tens to thousands); there are many transducers on the groove. When the same frequency and phase electric energy are applied, a huge piston is synthesized for reciprocating vibration. This vibration phenomenon is what we usually call ultrasonic wave.

3、加熱及溫度控制系統：加熱器采用鑄鋁加熱片，可耐酸堿，壽命長。加熱的目的是將清洗劑加熱以增加清洗機的洗滌效果，溫度自動控制，可在適當范圍內隨意調整。

3. Heating and temperature control system: the heater adopts cast aluminum heating plate, which can resist acid and alkali and has long service life. The purpose of heating is to heat the cleaning agent to increase the washing effect of the cleaning machine. The temperature is automatically controlled and can be adjusted at will within an appropriate range.

4、清洗槽：清洗槽采用SU304不銹鋼經氬弧焊焊制而成，槽體上設置有排渣檢修口、保溫隔聲層等。

4. Cleaning tank: the cleaning tank is made of su304 stainless steel by argon arc welding, and the tank body is provided with slag discharge access hole, thermal insulation and sound insulation layer.

5、槽液循環過濾系統：在該系統中設有過濾器，對槽液進行動態過濾，以維持槽液的清潔度。當工件出槽，經過過濾的液體流經槽體上部的噴淋環節對工件進行一次沖洗，以便沖掉工件出槽，以避免其對下道槽液造成污染。

5. Tank liquid circulation filtration system: a filter is set in the system to dynamically filter the tank liquid to maintain the cleanliness of the tank liquid. When the workpiece is out of the tank, the filtered liquid flows through the spray link on the upper part of the tank body to wash the workpiece once, so as to flush the workpiece out of the groove, so as to avoid the contamination of the next channel liquid.

6、輸送系統：根據被清洗工件的形狀、體積、批量等確定超聲波清洗機的輸送方式及控制方式。典型的輸送方式有——懸鏈、網帶、雙鏈、步進、電葫蘆、自行葫蘆、滾筒、轉盤、龍門架、機械手、吊籃、推盤等等。

6. Conveying system: determine the conveying mode and control mode of ultrasonic cleaning machine according to the shape, volume and batch size of the workpiece to be cleaned. The typical conveying methods are suspension chain, mesh belt, double chain, stepping, electric hoist, self-propelled hoist, drum, turntable, gantry, manipulator, basket, pusher, etc.

7、噴淋漂洗系統：根據被清洗工件的表面狀況，有的清洗機配備噴淋漂洗工序，將超聲波清洗和噴淋清洗有機地結合起來。

7. Spray rinsing system: according to the surface condition of the workpiece to be cleaned, some cleaning machines are equipped with spray rinsing process, which organically combines ultrasonic cleaning and spray cleaning.

8、烘干系統：根據被清洗工件的狀況，有的清洗機配備烘干系統，烘干系統主要由加熱器、風機、吹風噴嘴等組成，溫度自動控制。

8. Drying system: according to the condition of the workpiece to be cleaned, some cleaning machines are equipped with a drying system. The drying system is mainly composed of heater, fan, blowing nozzle, etc., with automatic temperature control.
